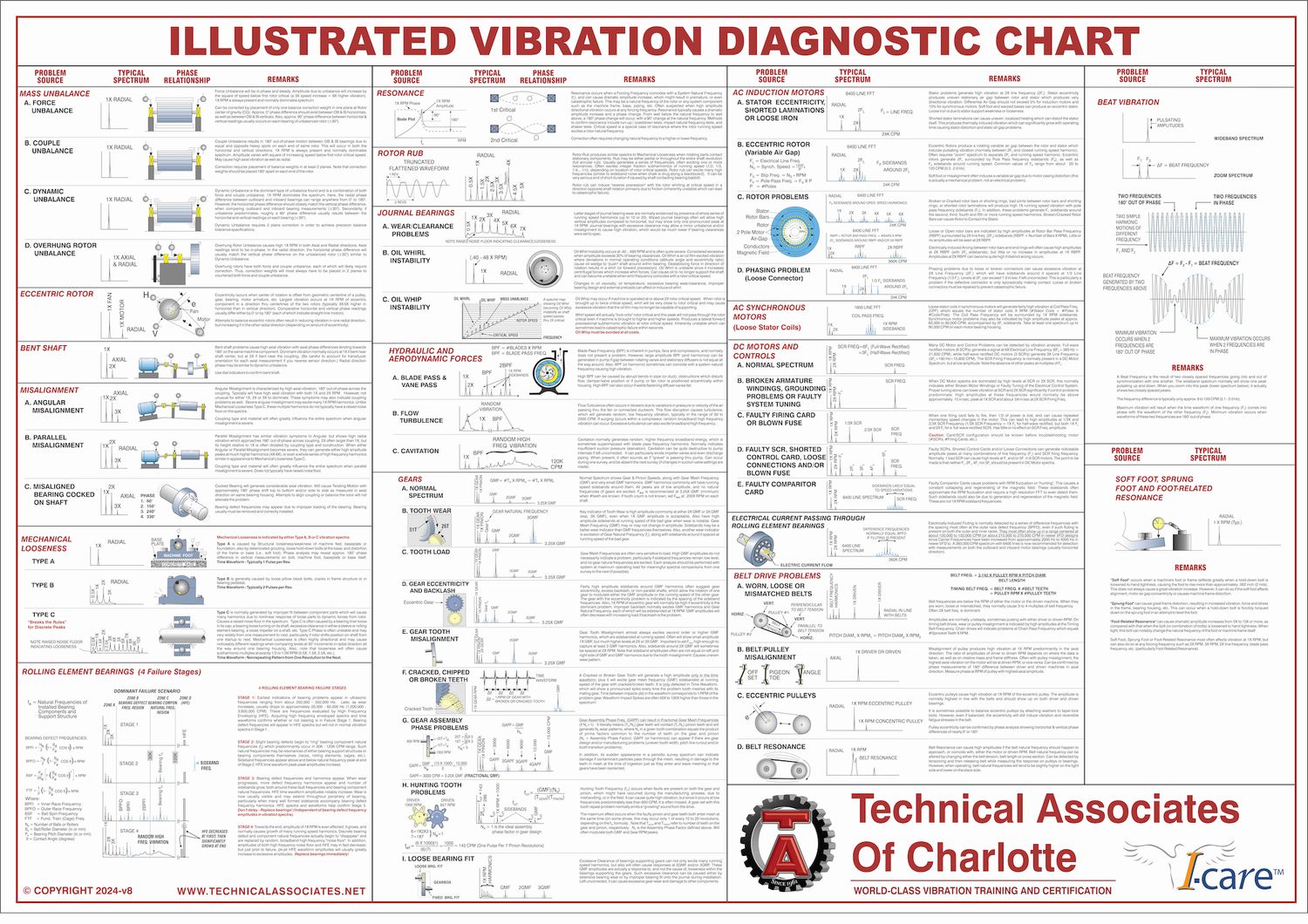

The "Illustrated Vibration Diagnostic Wall Chart" measures 37" high x 53" wide and is a highly versatile tool for accurate Vibration Analysis within a Condition Monitoring Program.
The chart displays typical vibration spectra which help determine the operating condition of rotating machines.
This 8th Edition of the Diagnostic Chart will guide the Analyst in diagnosing a wide array of potential problems and includes key features such as:
(1) illustrations of typical vibration spectra
(2) text elaborating on the symptoms which normally accompany each of the 44 machine problems covered
(3) drawings illustrating how phase reacts when such problems are predominant.
One of the greatest shortcomings in today's predictive or reliability - maintenance programs is the ability to diagnose mechanical and electrical problems within an operating machine using vibration signature analysis.
Increasing numbers of plants have acquired data collectors/software and have captured great numbers of vibration measurements.
However, very few facilities know how to unlock the secrets not only to detect the types of problems covered by this invaluable chart, but also how to assess the severity of the problems present.
This chart displays the core information required to unlock the secrets to determining machine health.
Developed by Technical Associates of Charlotte, P.C., it contains over 20 years of practical experience and intensive research.
